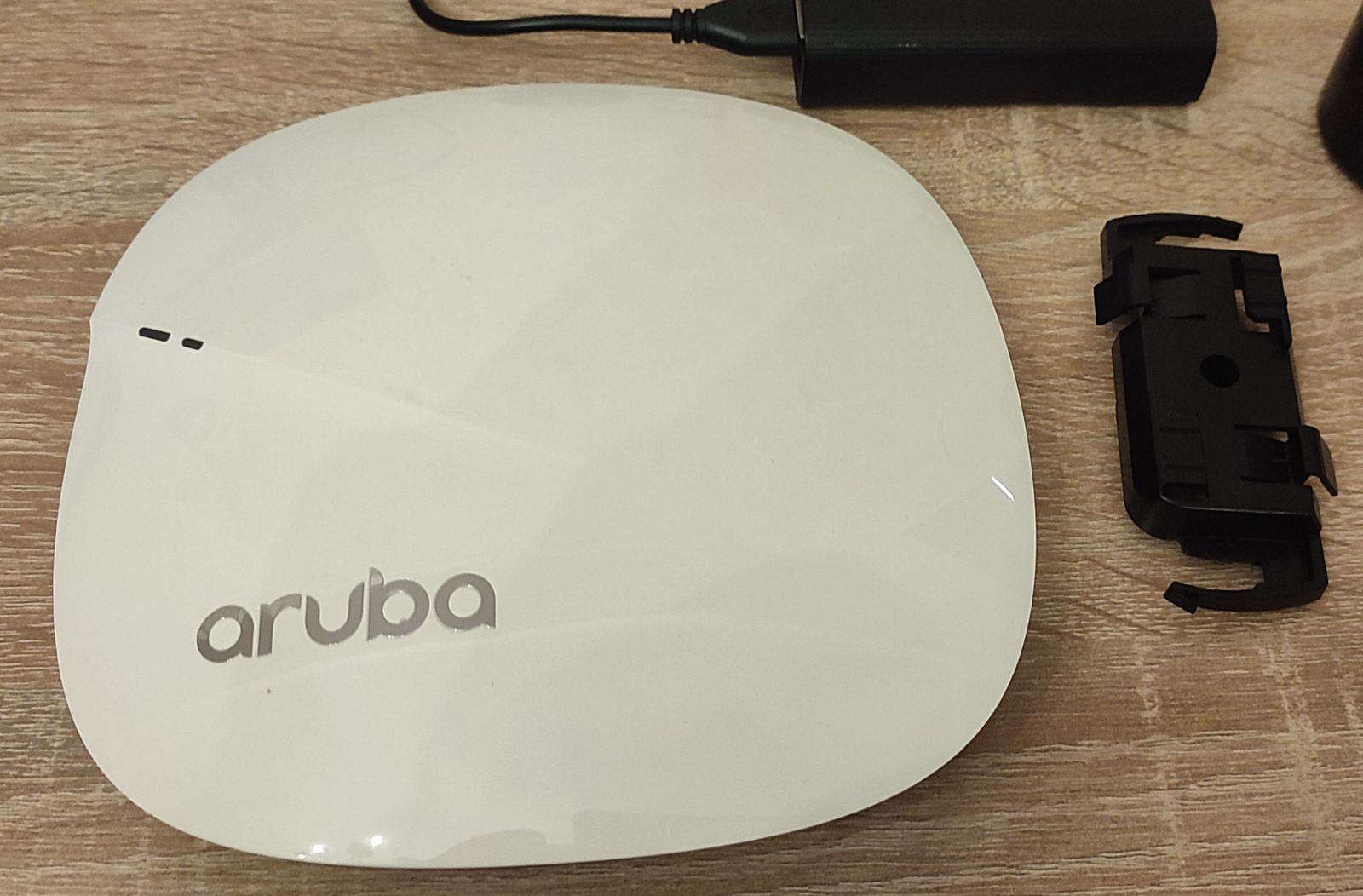

WiFi точка доступу Aruba IAP-305-US

Бізнес WiFi 5 точка доступу Aruba IAP-305-US. 5 ГГц — до 1300 Мбіт/с, 2.4 ГГц — до 400 Мбіт/с, вбудовані антени MU-MIMO 3х3. Заявлена підтримка до 250 клієнтів.

Живлення 12 вольт, споживання 4,5-7 Вт. Підтримує PoE 802.3at і 802.3af (буде відключено USB і включене економія енергії).

Час завантаження точки 10 хвилин (secure boot, FIPS тести). EOL прийшов у 2021 році, тому є багато пропозицій коли компанії оновлюють залізо.

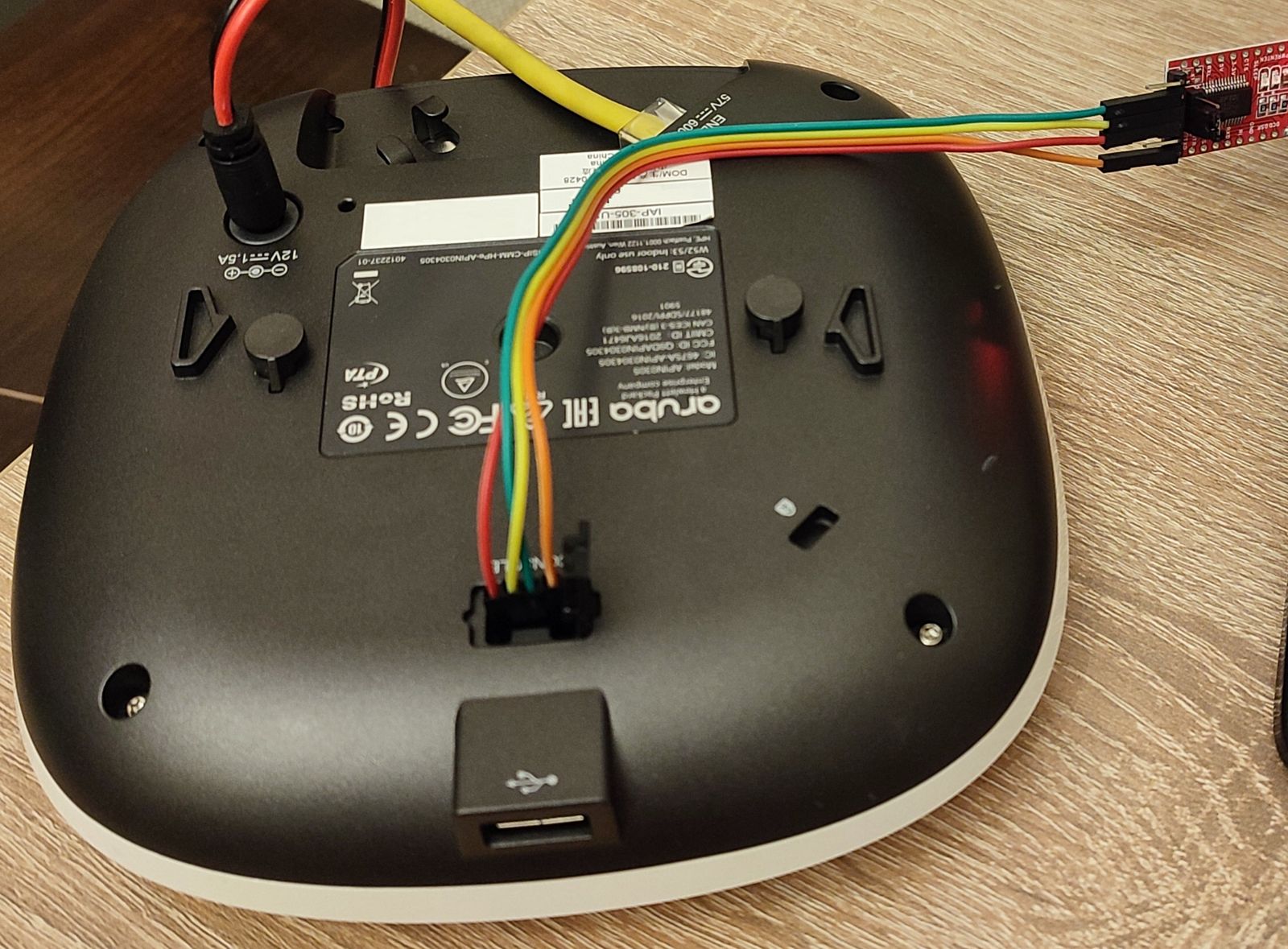

Має TTL 3.3В serial інтерфейс.

Всередині критися віртуальний контролер, який керує всіма точками в мережі. Точки мають бути одного регіону (RW – Rest World).

APBoot 2.1.4.8 (build 58435)
Built: 2017-02-15 at 15:30:17

Model: AP-30x
DRAM: 512 MiB
Flash: Detected MX25R3235F: total 4 MiB
NAND: 128 MiB
PCIE0 link up
dev fn venID devID class rev MBAR0 MBAR1 MBAR2 MBAR3
00 00 168c 0040 00002 00 00000004 00000000 00000000 00000000
Power: DC
Net: eth0
Radio: qca9990#0, ipq4029#1
Reset: warm
FIPS: passed

Hit <Enter> to stop autoboot: 0
Booting OS partition 1
Checking image @ 0x2000000
Copying image from 0x84000000

Image is signed; verifying checksum... passed
SHA2 Signature available
Signer Cert OK
Policy Cert OK
RSA signature verified using SHA2.
Uncompressing Kernel Image ... OK
[ 0.000000]
[ 0.000000] HPE Aruba Networking
[ 0.000000] ArubaOS Version 8.13.1.0-8.13.1.0 (build 93688 / label #93688)
[ 0.000000] Built by jenkins@4e1e84440242 on 2025-09-18 at 22:01:17 UTC (gcc version 4.6.3)
[ 0.000000]
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[ 0.016814] SMP: Total of 4 processors activated (384.00 BogoMIPS).
[ 0.055315] i2c-gpio driver registered
[ 18.381417] 3 ofpart partitions found on MTD device 7980000.qcom,nand
[ 18.447043] Creating 3 MTD partitions on "7980000.qcom,nand":
[ 18.515777] 0x000000000000-0x000002000000 : "aos0"
[ 18.615044] 0x000002000000-0x000004000000 : "aos1"
[ 18.701672] 0x000004000000-0x000008000000 : "ubifs"
[ 18.838611] m25p80 spi0.0: found mx25r3235f, expected n25q128a11
[ 18.945963] Found AT97SC3203 on i2c_1.8
[ 18.990170] Key type dns_resolver registered
[ 19.030496] Registering SWP/SWPB emulation handler
[ 20.730201] There is no gpio reset info
[ 20.798324]
Starting Kernel SHA1 KAT ...
[ 20.832790] Completed Kernel SHA1 KAT
[ 20.879832] Starting Kernel HMAC-SHA1 KAT ...
[ 20.929811] Starting Kernel DES KAT ...[ 20.975571] Completed Kernel DES KAT
[ 21.019281] Starting Kernel AES KAT ...
[ 21.063072] Completed Kernel AES KAT
[ 21.063072]
[ 21.126649] Starting Kernel AESGCM KAT ...
[ 21.173392] Completed Kernel AESGCM KAT
[ 21.222633] Completed Kernel HMAC-SHA1 KAT
Thu Jan 1 00:00:00 PST 1970
Populate AP type info
Domain Name: SetMeUp.arubanetworks.com
Current OEM Name : HPE Aruba Networking
Disabling ipv6 for devices by default
AP-type has_ble_support: ONBOARD.
IPv6 capability is supported for devices
No panic info available
Enabling ble_daemon and ble_relay via nanny
glenmorangie: Start hotplug
per-ap-setting not in backup and restore mode, Backup ENV.
Installing glenmorangie ethernet driver
[ 37.702737] edma module_init
Enter non-FIPS mode
Cfg len is 2963
factory default SSID detected...
factory_ssid_present 1
The AP is in factory default status
Mesh disabled
single uplink platform
Starting watchdog process...
Aruba watchdog daemon started [4 thread(s)]
Loading configuration file of length 2963...
wifi uplink not present...
extended ssid config detected...
Terminal access enabled...
factory default SSID detected...
No valid ssid was found...
extended ssid activate due to no valid ssid ...
touching file /tmp/ip_mode_0
do ethtool autoneg on for bond0
eth1 admin down
SIOCGIFFLAGS: No such device
init usb modem ...
[ 41.777592] bond0: GMAC Link is up with phy_speed=1000
[ 42.145936] SCSI subsystem initialized
No USB Plugged in
Checking country code.
error in reading source file
Ethernet uplink active. Becoming Mesh Portal
Mesh is DISABLED on this device.
extended ssid is activated on the platform ...
copying bootuplog ...
[ 72.037063] uol: module license 'Proprietary' taints kernel.
[ 72.092357] Disabling lock debugging due to kernel taint
allow PAPI
set device anul0 mtu to 2000
notify asap_mod 3g no present...
Starting update SBL1 ...
SBL1 was updated already
Done.
apdot1x authentication is not enabled
Starting DHCP
Getting an IP address...
Jan 1 00:00:52 udhcpc[4912]: udhcpc (v0.9.9-pre) started
Jan 1 00:00:52 udhcpc[4912]: send_discover: pkt num 0, secs 0
Jan 1 00:00:52 udhcpc[4912]: Sending discover...
Jan 1 00:00:52 udhcpc[4912]: send_selecting: pkt num 0, secs 0
Jan 1 00:00:52 udhcpc[4912]: Sending select for 192.168.1.34...
Jan 1 00:00:52 udhcpc[4912]: Lease of 192.168.1.34 obtained, lease time 1800
Jan 1 00:00:52 udhcpc[4912]: DHCP OPT 42, len: 4, ip: 192.168.1.1
[ 77.248323] ip_time_handler: Got ip and packets on bond0 Started conductor election 14-0, rand 31
192.168.1.34 255.255.255.0 192.168.1.1
Compressing all files in the /etc/httpd directory...
Done.
Starting Webserver
bind: Transport endpoint is not connected
bind: Transport endpoint is not connected
bind: Transport endpoint is not connected
NTP server 192.168.1.1 received via DHCP option.
Put ntpdate to the nannylist.
AP rebooted caused by warm reset
shutting down watchdog process (nanny will restart it)...

<<<<< Welcome to the Access Point >>>>>

Starting running Openssl3 FIPS KAT
Power supply mode is DC, USB Modem is not present.
User: openssl3 KAT successfully
Completed Openssl3 FIPS KAT test
[ 105.634316] Starting Kernel HMAC SHA1 FIPS KAT ...
[ 105.677102] Completed Kernel HMAC SHA1 FIPS KAT
[ 107.642377] Starting Kernel HMAC SHA256 FIPS KAT ...
[ 107.687243] Completed Kernel HMAC SHA256 FIPS KAT
[ 109.648298] Starting Kernel HMAC SHA384 FIPS KAT ...
[ 109.693220] Completed Kernel HMAC SHA384 FIPS KAT
ble_ready NOT present @init ....
[ 111.648293] Starting Kernel HMAC SHA512 FIPS KAT ...
[ 111.693156] Completed Kernel HMAC SHA512 FIPS KAT
Firmware AES-CCM Known Answer Test Passed
[ 140.418391] (18:02:06) !!! Init ---> Conductor
[ 140.459137] asap_send_elected_conductor: sent successfully
[ 140.559272] asap_send_elected_conductor: sent successfully
ble_ready is present @61 .... start processing msgs from APB
User: admin
Password:
show tech-support and show tech-support supplemental are the two most useful outputs to collect for any kind of troubleshooting session.

c8:b5:ad:00:11:22#

На прошивці 8.9.0.2_83074 (Digitally Signed – Production Build) є команда fips-mode disable.
